How to add a shield (and a recharge station)

In this tutorial we will make a shield that can be recharged at a station.


1. Open BP_CharacterBase and add a new float variable (Shield, default value: 1.0)

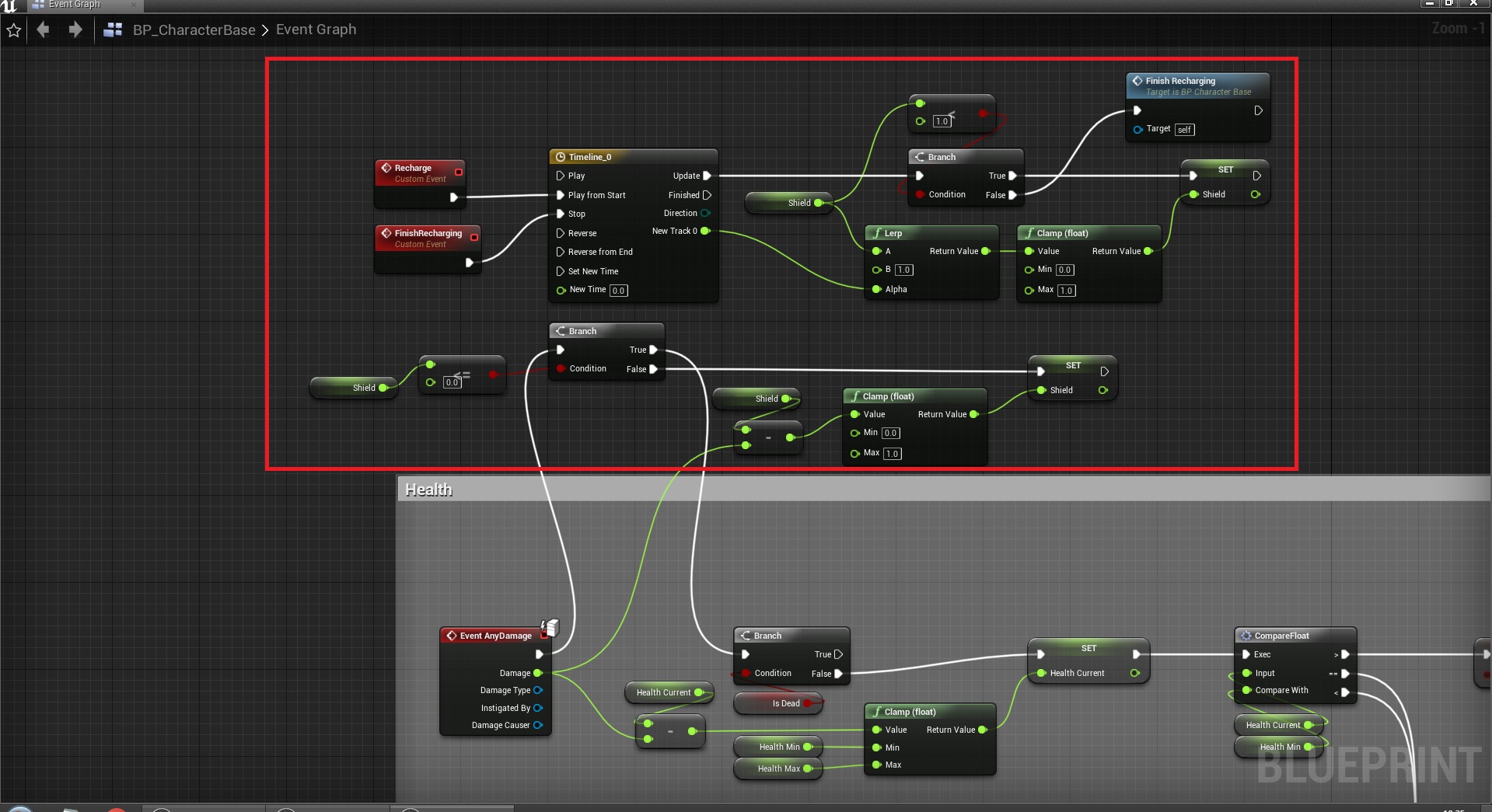

2. Recreate this blueprint in the health section

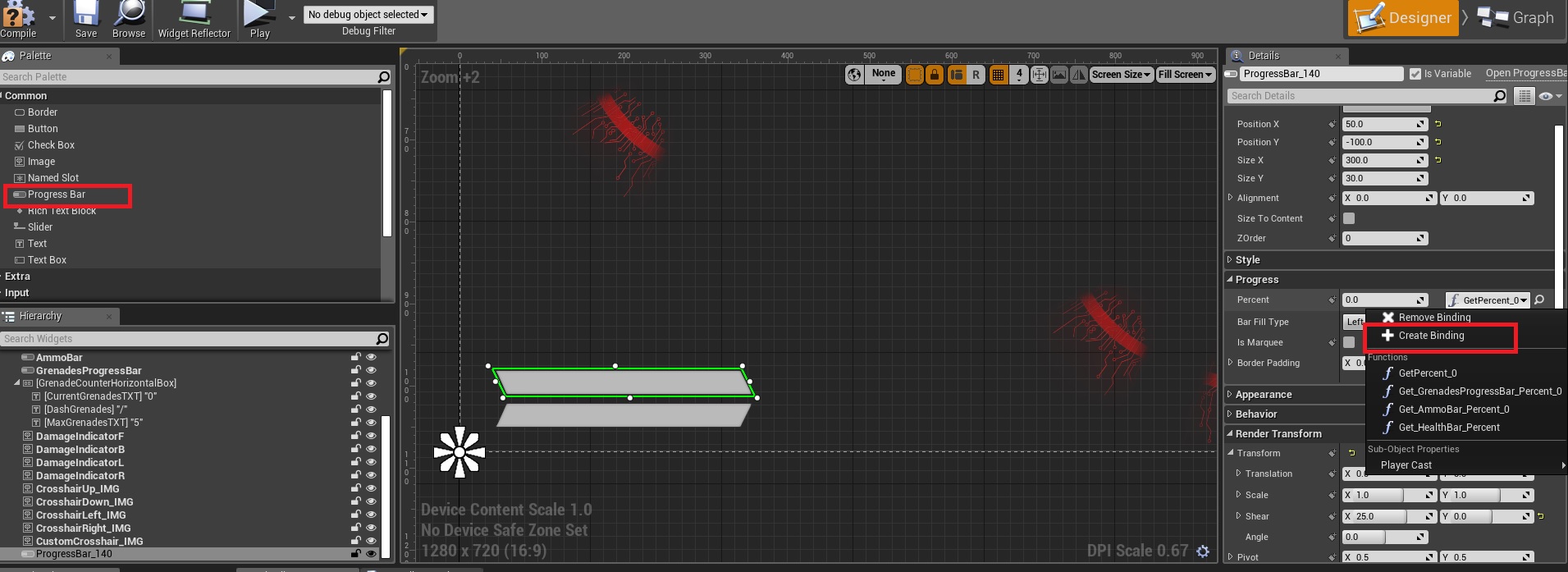

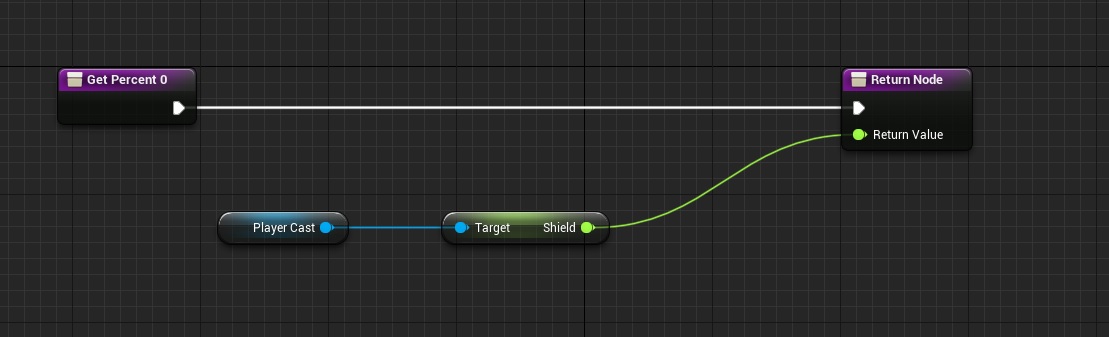

3. Open the W_PlayerHUD widget and add a new progress bar and create a new binding for its percentage.

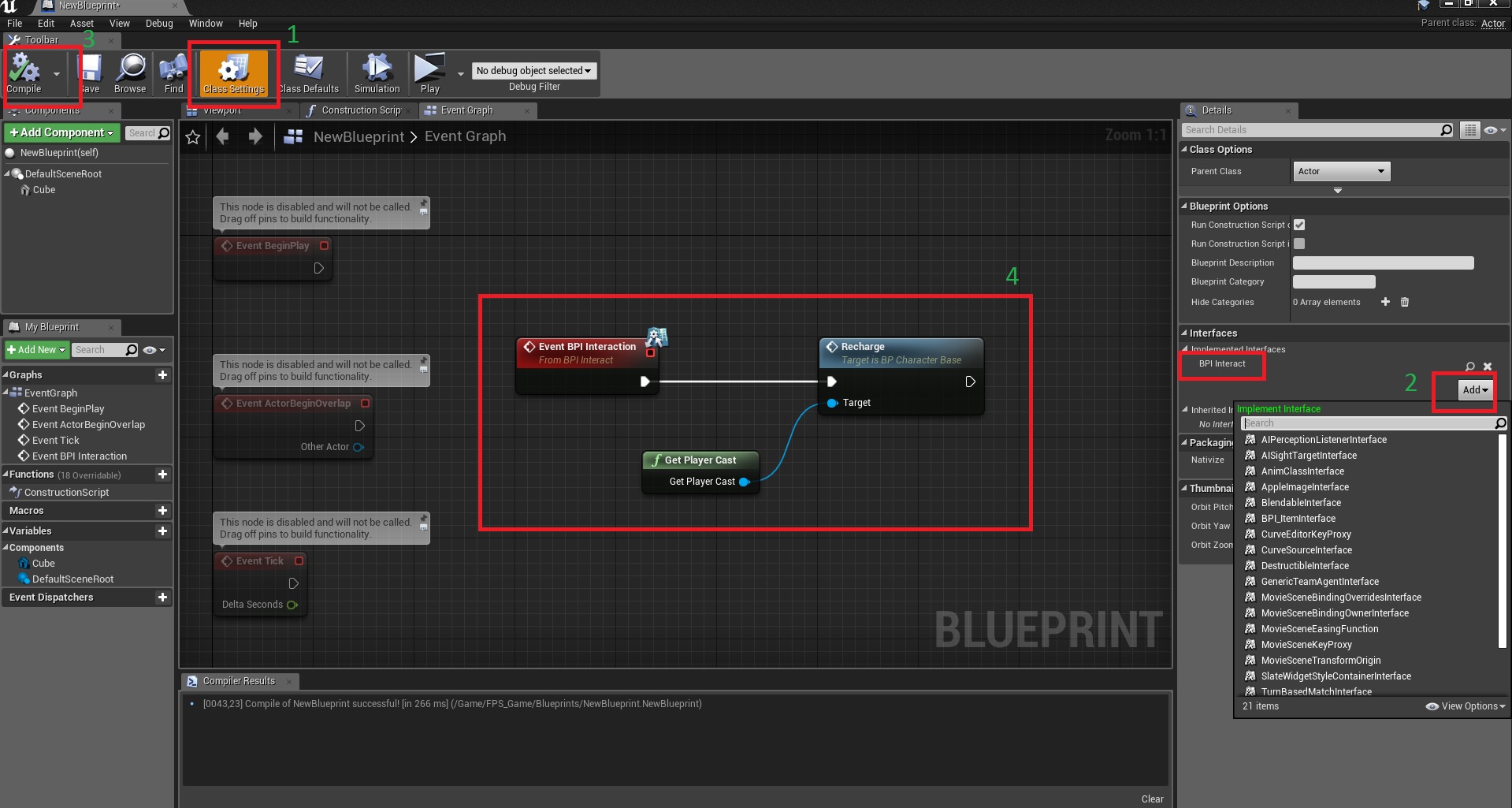

4. Create a new blueprint actor, this will be the station where the shield can be recharged
NOTE: for more info about interactive actors, check out THIS tutorial.
NOTE 2: this Recharge node is the Custom Event created in step 2


That’s it!

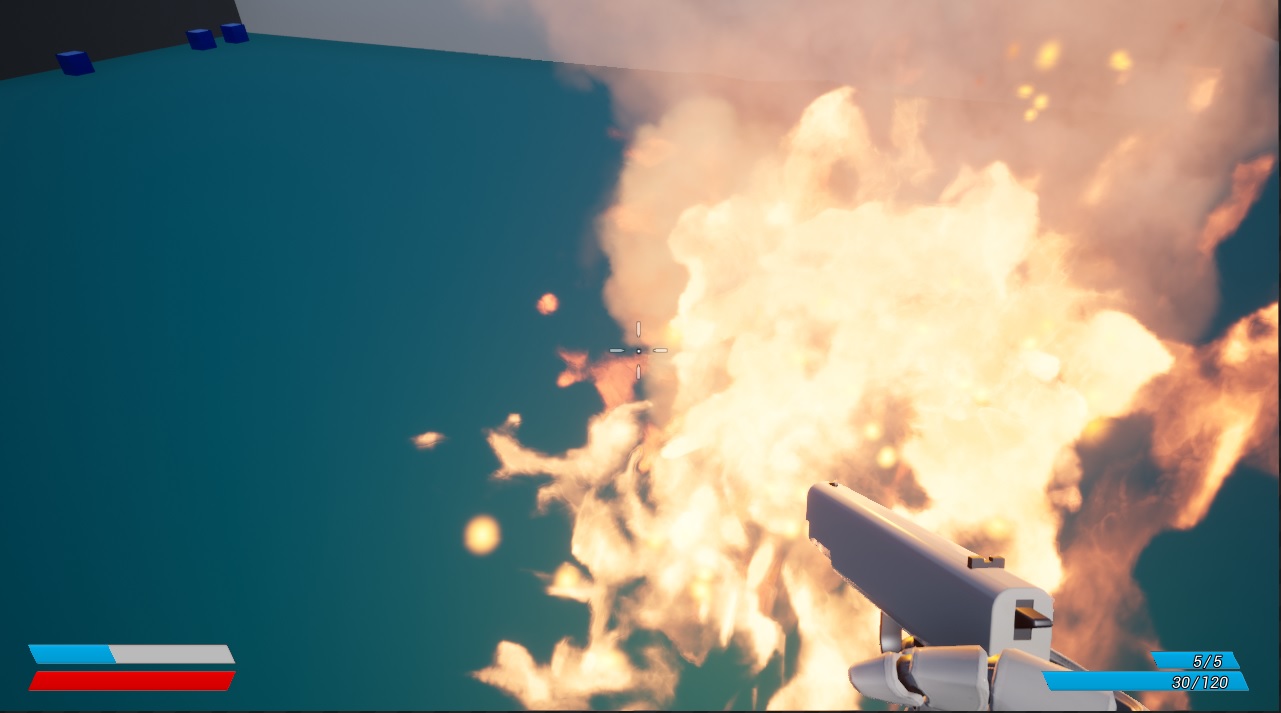

The players health won’t be affected for as long as the shield is active.
